TECHNICAL FEATURES
  • Dimensions 601 x 1997 x 587 mm
  • Weight 95 kg
  • Static refrigeration
  • Heating program
  • Automatic defrosting
  • Lock (optional)
  • Internal LED light
  • N. compressors: one cell 1 / double cell 2
  • Maximum absorption: one 240w cell / double 480w cell
  • Double glazed door in metal or solid wood
  • Anti UV rays glass
  • Available versions: monotemperature, multi-temperature, dual
  • Temp regulation: mono 4° / 18°c, dual - upper area 4° / 18°c, lower area 4° / 18°c, ambient temperature 10° / 32°

All temperatures are considered in centigrade - C°.

EXTERIOR FINISH
  • Door: black anodized aluminum
  • Frame: black painted stainless steel
TRAY FINISH
  • Natural oak
  • Natural ash
DOWNLOAD

Basic setups

Wine with fixed trays

Maximum capacity 750ml bottles: 107 bottles

Temperature range: 4° - 18°

Humidity: 60 / 70%

Wine with removable trays

Maximum capacity 750ml bottles: 90 bottles

Temperature range: 4° - 18°

Humidity: 60 / 70%

Cured meats

Capacity maximum weight: 90Kg

Temperature range: 4° - 18°

Humidity: 60 / 70%

Cheese

Capacity maximum weight: 90Kg

Temperature range: 4° - 18°

Humidity: 60 / 70%

Cigar

Capacity maximum: 1500 / 3000 pz

Temperature range: 4° - 18°

Humidity: 60 / 70%

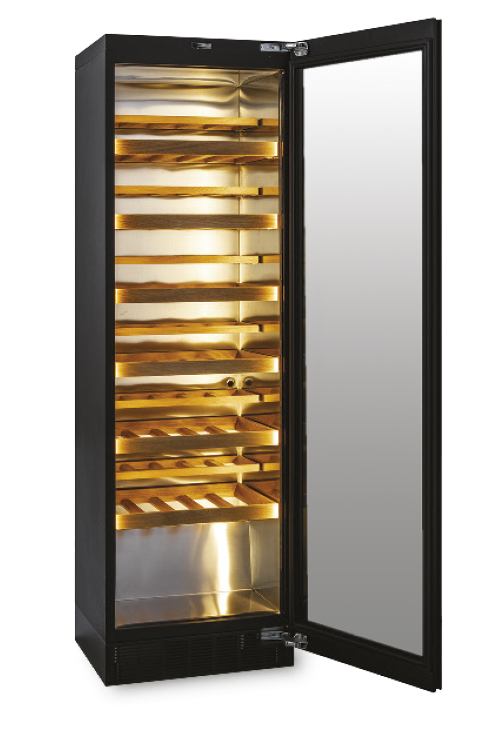

VARIANT 01

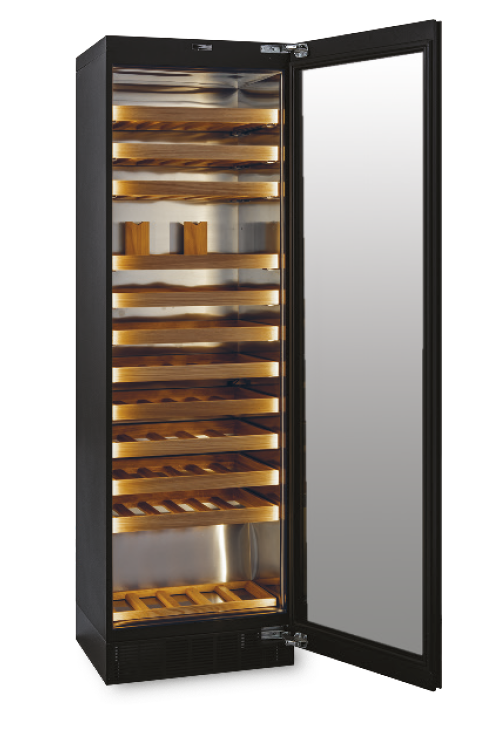

VARIANT 02

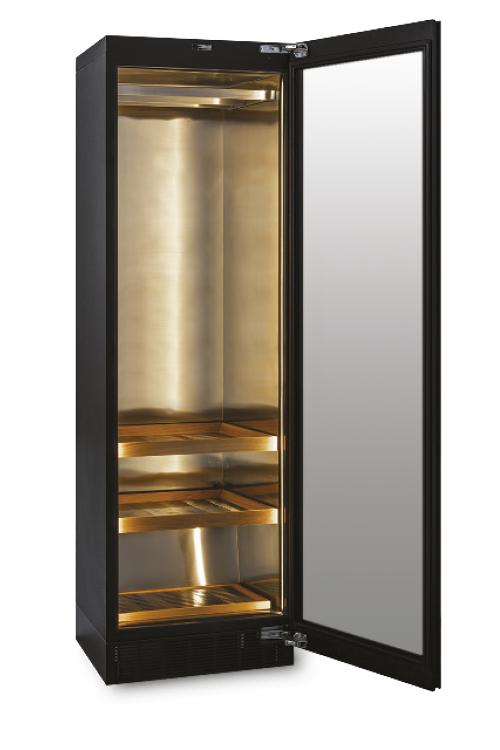

VARIANT 03

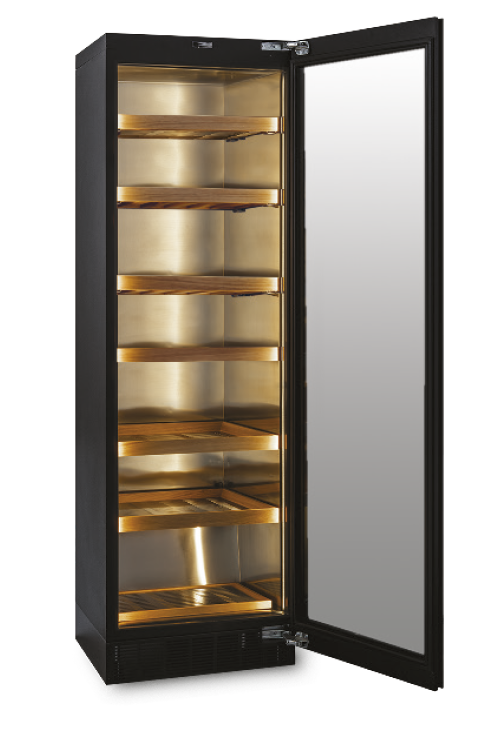

VARIANT 04

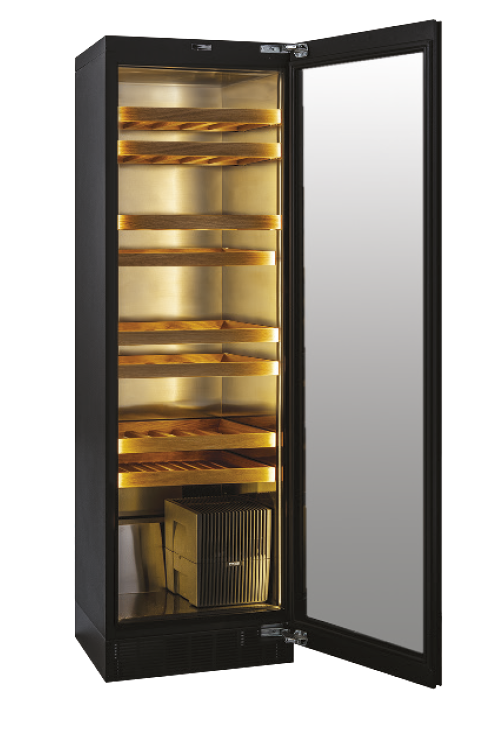

VARIANT 05

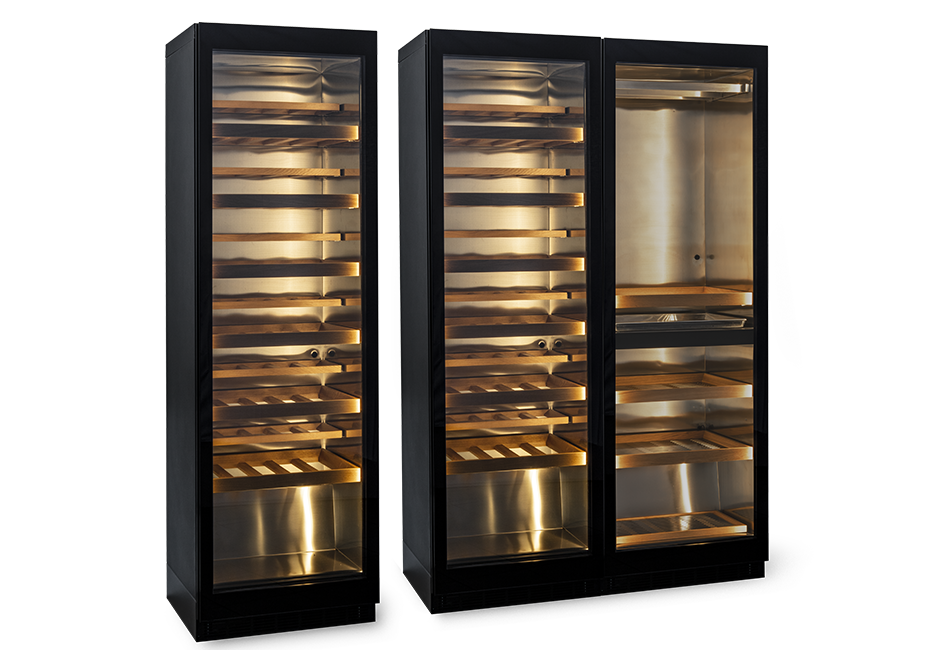

Possible configurations

The IPS product are completely customized, each module can be configured individually or in pairs to create a multifunctional product that is perfect for all types of storage.

Single

Single cooling cabinet with dedicated compartment for storing one type of content.

Combi

Combi cooling cabinet with two dedicated compartments for storing two different products at a time.

Single+Combi

Double cooling cabinet with three dedicated compartments for storing up to three different products at a time.

Combi+Single

Double cooling cabinet with three dedicated compartments for storing up to three different products at a time.

Single+Single

Double cooling cabinet with two dedicated compartments for storing two different products at a time.

Combi+Combi

Double cooling cabinet with four dedicated compartments for storing up to four different products at a time.
